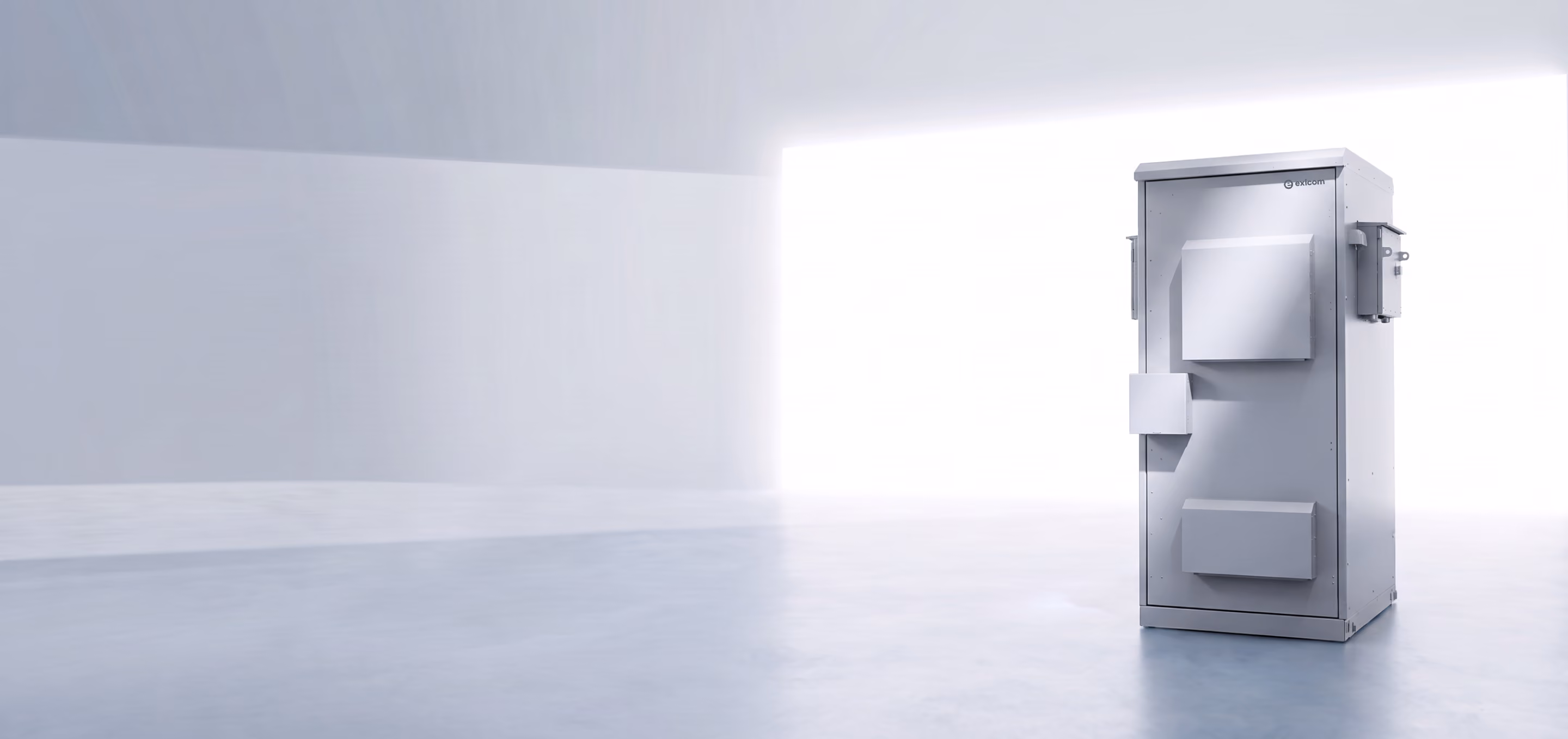

EXTS - Hybrid 36kW/48V/HS
36kW High-Security Solar-Hybrid Power System for Outdoor Sites
Solar-Smart Power for Every Hybrid Site
EXTS - Hybrid 36kW/48V/HS is the enhanced-solar variant of Exicom's 36kW hybrid platform, stepping up to a 4kW EXTC Photon 4048 solar MPPT converter alongside the 4kW EXTR Quantum 4048 rectifier for sites that want to maximize solar offset. Built into the same heavy-duty, theft-proof IP55 cabinet, it runs at up to 96.5% efficiency with fan-and-filter cooling and comprehensive Li-Ion battery management under the M2000 Controller. Swappable rectifiers, MPPT & controller, ECO Mode energy savings, and standard remote monitoring via web browser, Modbus, and SNMP round out a hybrid system designed for the highest solar-utilization, high-security outdoor deployments.
Product Features
- System Contain – M2000 Controller + Rectifier + MPPT+ Battery Distribution + Load Distribution
- Swappable Rectifiers, MPPT & Controller
- Comprehensive battery management & built-in support for Li-ion battery charge
- ECO Mode function for rectifier enabling significant energy savings
- Remote Access – Monitoring through the web browser, Modbus & SNMP as a standard feature
- High Efficiency up to 96.5%
- Advanced AC and DC energy metering options
- Heavy Duty, Theft Proof & High Security Featured Cabinet
Tech specs
- AC Input: 3Phase, 90-300Vac (Nominal Voltage: 230Vac)
- Max Output Power: 36kW
- Rectifier Module: 4kW (EXTR Quantum 4048)
- Solar MPPT: 4kW (EXTC Photon 4048)
- Output Voltage: 54Vdc (42-58Vdc)
- Battery Compatibility – VRLA/Li-Ion
- Cooling: Fan & Filter
- Mounting: Floor mount
- IP 55 Outdoor solution
- Dimensions : 2050mm (H) x 800mm (W) x 800mm (D)
