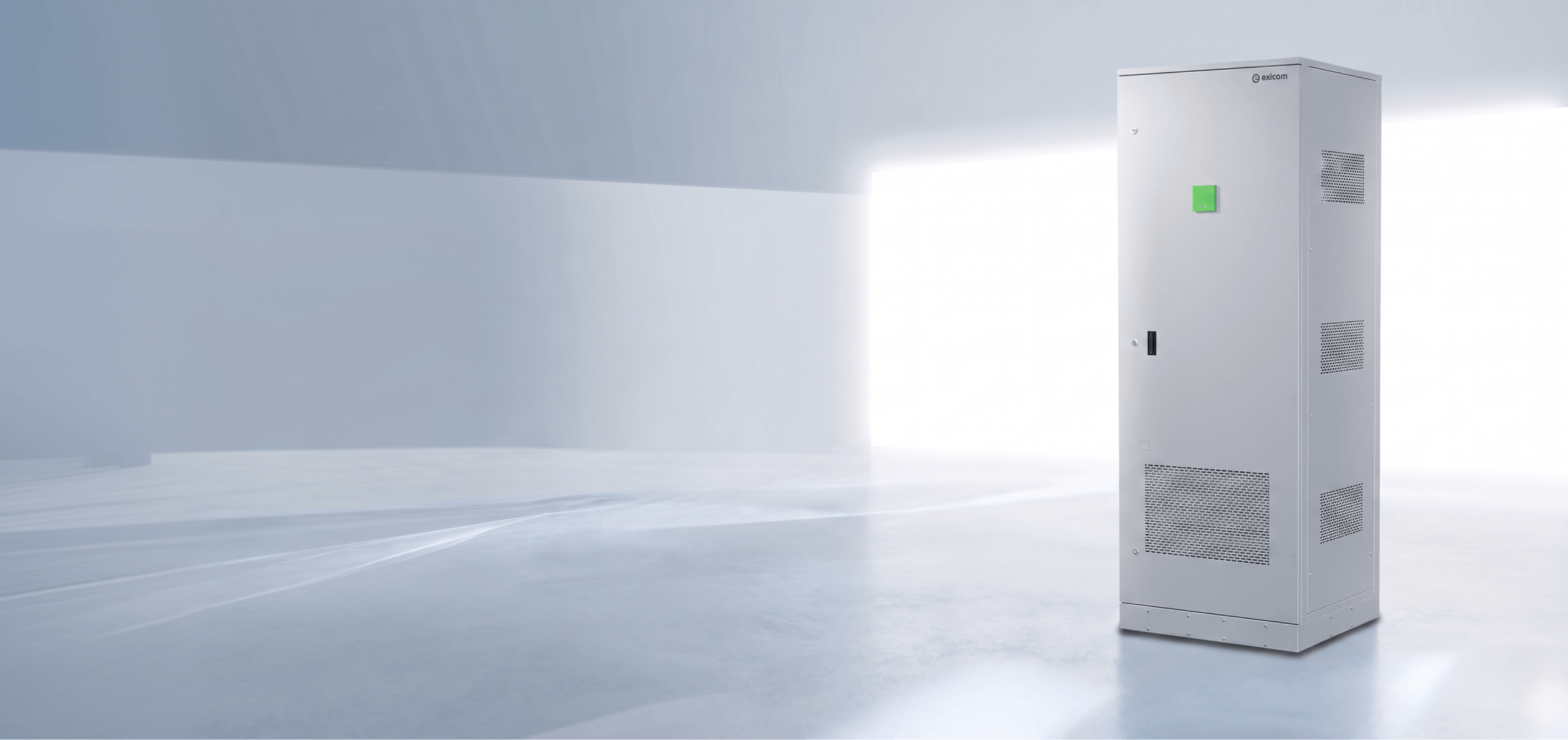

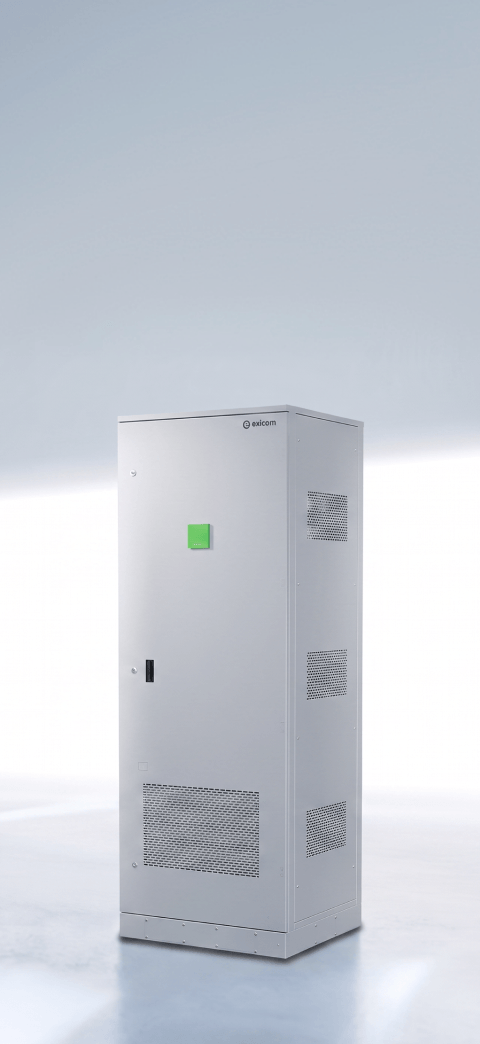

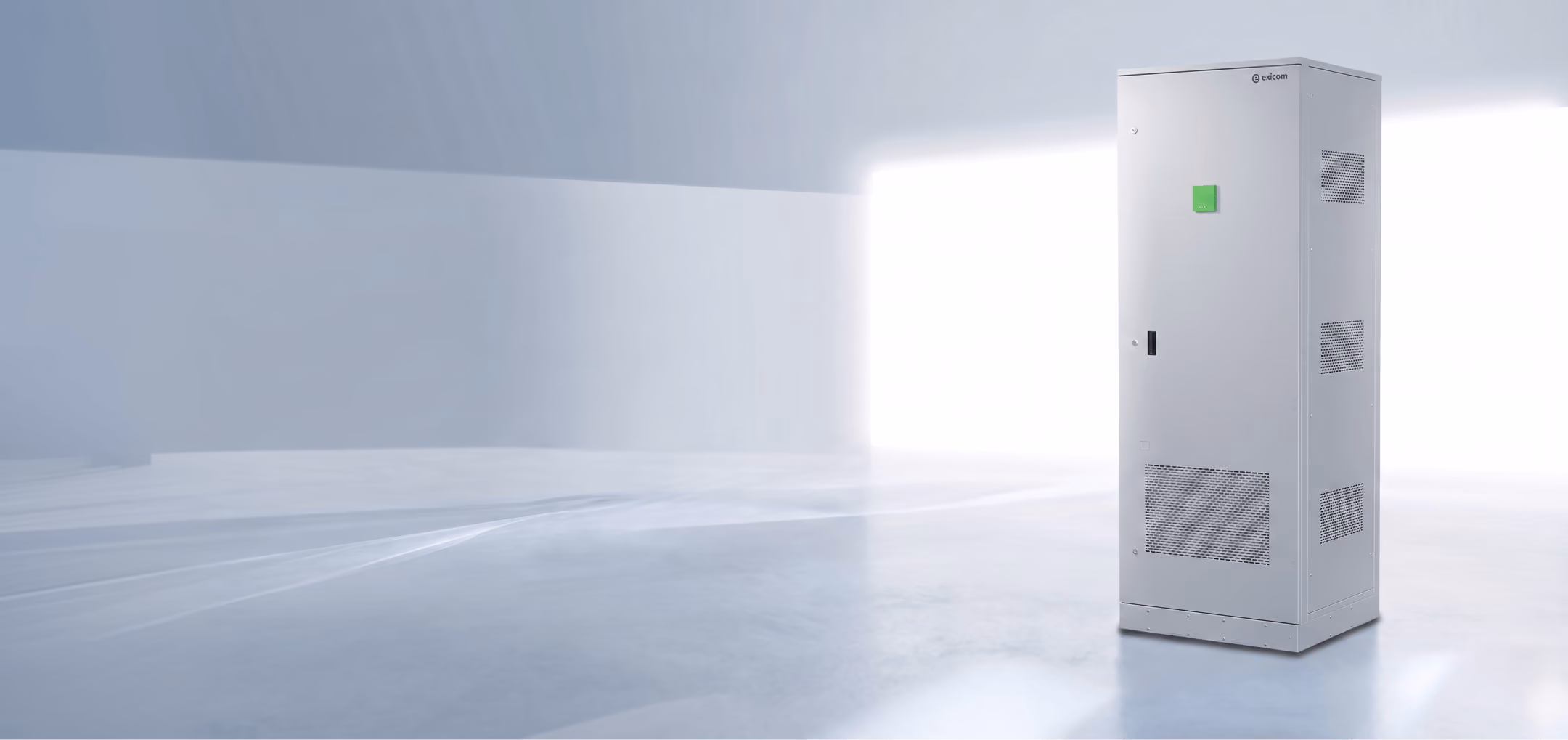

EXTS - Intra 120kW/48V
120kW Floor-Mounted Indoor Power System for High-Density Rooms
Reliable DC Power for Indoor Equipment Rooms
Built for high-density indoor equipment rooms, EXTS - Intra 120kW/48V delivers 120kW from a single floor-mounted, IP20 cabinet using Exicom's 4kW EXTR Quantum 4048 rectifier modules at up to 96.5% efficiency. The M2000 Controller manages swappable rectifiers and comprehensive Li-Ion/VRLA battery charging in one system, while ECO Mode trims energy consumption across every module. Standard remote access over web browser, Modbus, and SNMP, together with advanced AC and DC energy metering, keeps large indoor sites as manageable as a single rack, even at this scale.
Product Features
- System Contain – M2000 Controller + Rectifier + Battery Distribution + Load Distribution
- Swappable Rectifiers & Controller
- Comprehensive battery management & built-in support for Li-ion battery charge
- ECO Mode function for rectifier enabling significant energy savings
- Remote Access – Monitoring through the web browser, Modbus & SNMP as a standard feature
- High Efficiency up to 96.5%
- Advanced AC and DC energy metering options
Tech specs
- AC Input: 3Phase, 90-300Vac (Nominal Voltage: 230Vac)
- Max Output Power: 120kW
- Rectifier Module: 4kW (EXTR Quantum 4048)
- Output Voltage: 54Vdc (42-58Vdc)
- Battery Compatibility: Li-Ion/VRLA
- Cooling: Natural
- Mounting: Floor mount
- IP 20 Indoor solution
- Dimensions : 2200mm (H) x 800mm (W) x 700mm (D)
