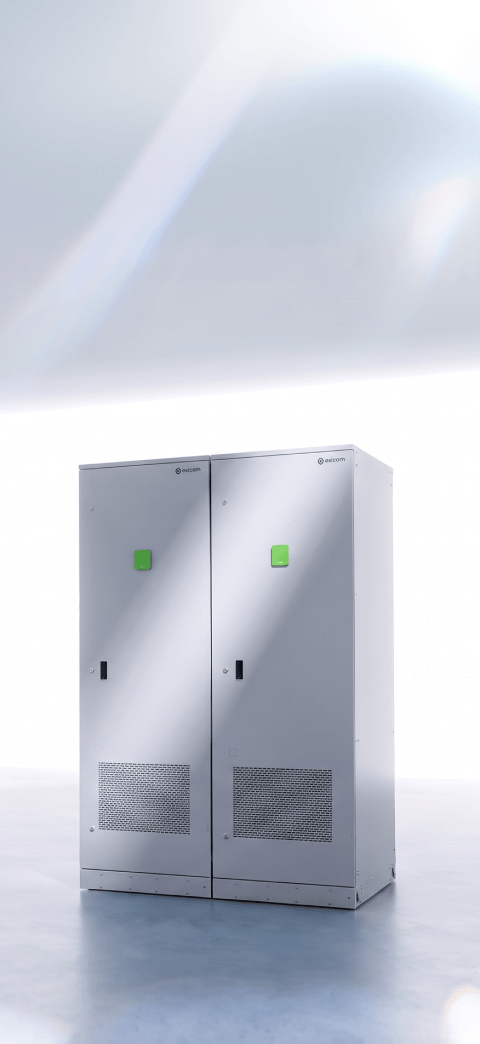

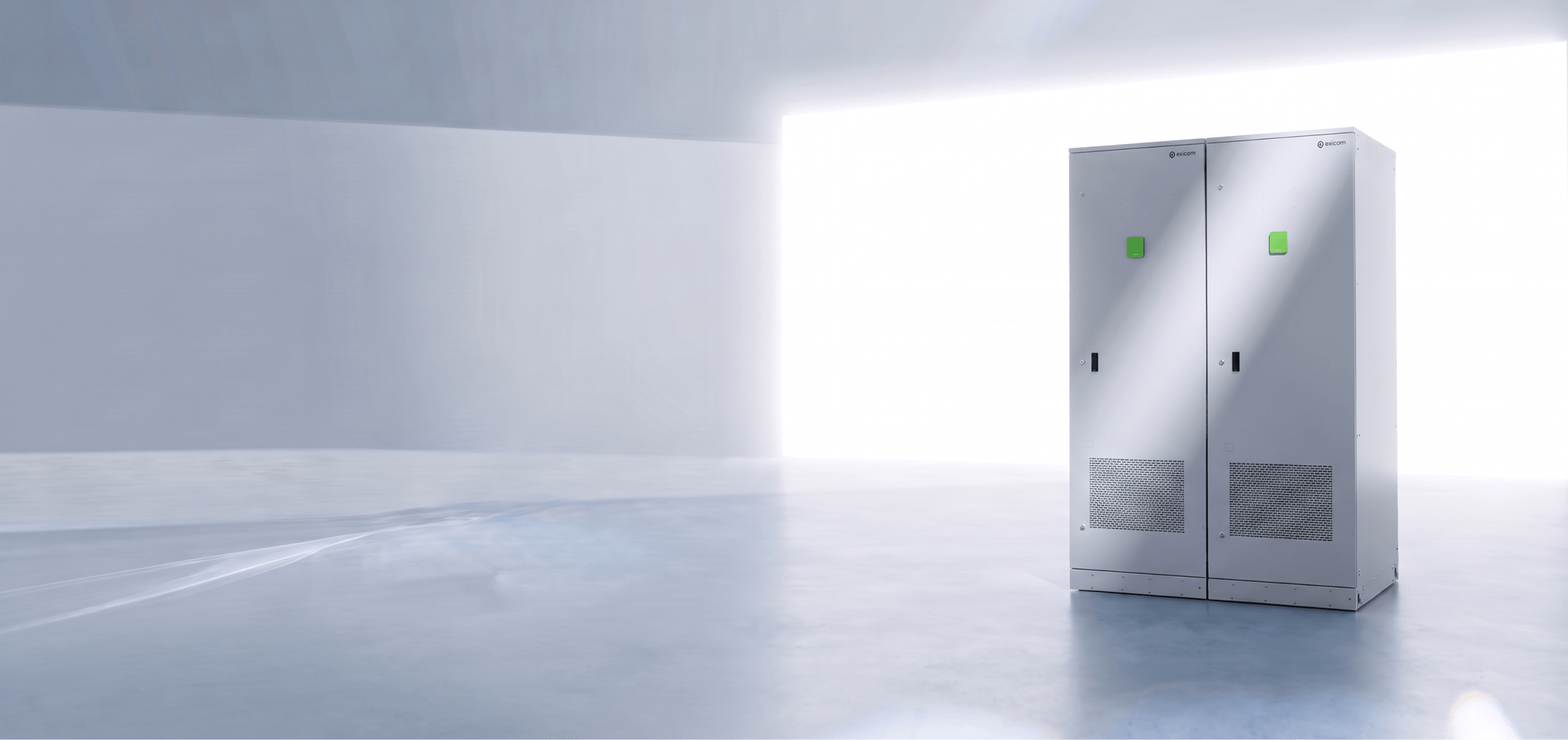

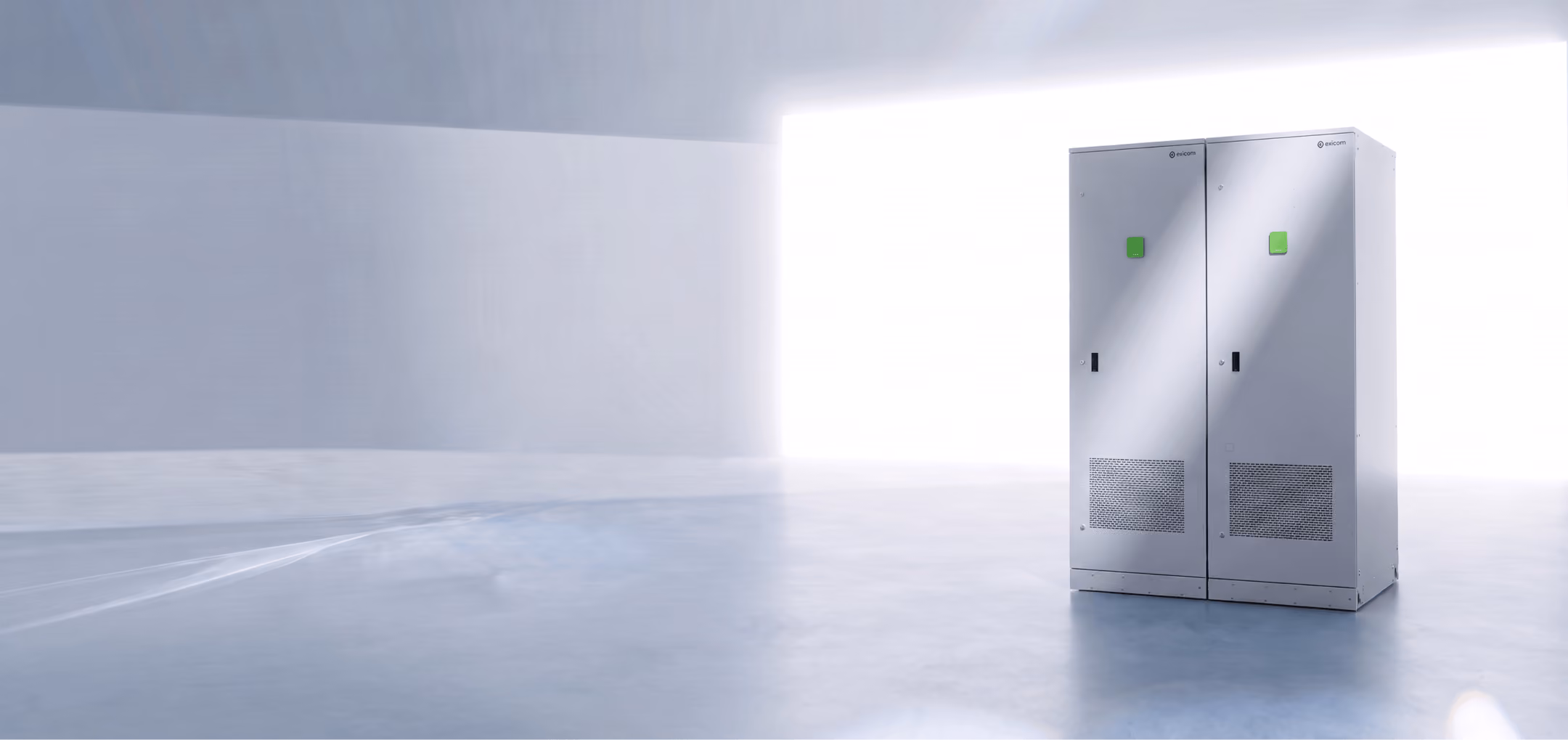

EXTS - Intra 240 kW
240kW High-Capacity Indoor Power System for Data-Heavy Sites
Reliable DC Power for Indoor Equipment Rooms
At 240kW, XTS Intra 240 kW is Exicom's largest indoor floor-mounted power system, built for data-heavy telecom facilities that need substantial DC capacity without moving power generation outdoors. 4kW EXTR Quantum 4048 rectifier modules run at up to 96.5% efficiency under the M2000 Controller, with comprehensive Li-Ion and VRLA battery management and swappable rectifiers for non-disruptive servicing. ECO Mode energy savings and standard remote monitoring through web browser, Modbus, and SNMP mean even the highest-capacity indoor site stays as visible and controllable as any smaller Exicom system.
Product Features
- System Contain – M2000 Controller + Rectifier + Battery Distribution + Load Distribution
- Swappable Rectifiers & Controller
- Comprehensive battery management & built-in support for Li-ion battery charge
- ECO Mode function for rectifier enabling significant energy savings
- Remote Access – Monitoring through the web browser, Modbus & SNMP as a standard feature
- High Efficiency up to 96.5%
- Advanced AC and DC energy metering options
Tech specs
- AC Input: 3Phase, 90-300Vac (Nominal Voltage: 230Vac)
- Max Output Power: 240kW
- Rectifier Module: 4kW (EXTR Quantum 4048)
- Output Voltage: 54Vdc (42-58Vdc)
- Battery Compatibility: Li-Ion/VRLA
- Cooling: Natural
- Mounting: Floor mount
- IP 20 Indoor solution
- Dimensions : 2200mm (H) x 1600mm (W) x 700mm (D)
