EXTS - Hybrid 12kW/48V
12kW Solar-Hybrid Outdoor Power System for Telecom Sites
Solar-Smart Power for Every Hybrid Site

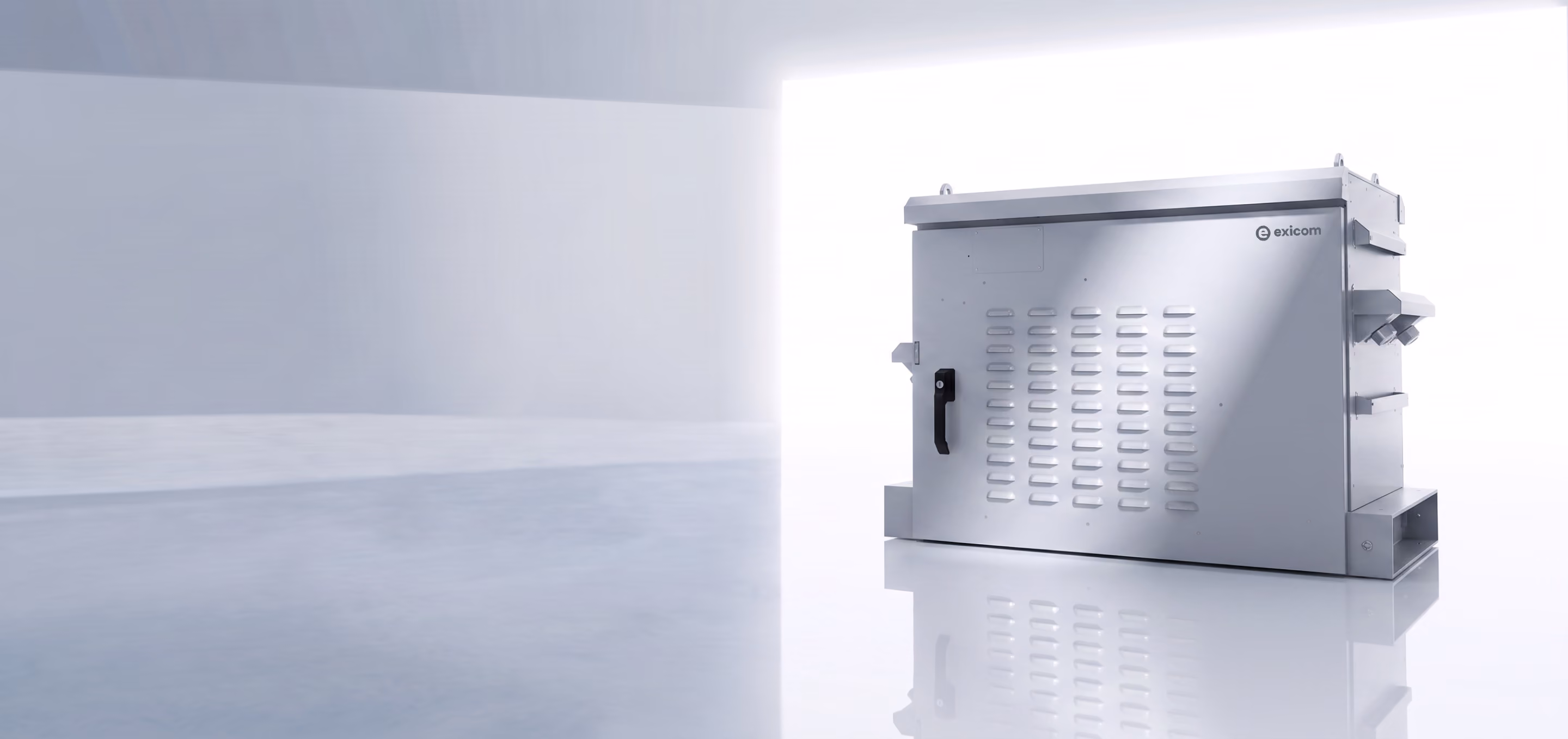

EXTS - Hybrid 12kW/48V brings solar into Exicom's outdoor power-system architecture, combining a 4kW EXTR Quantum 4048 rectifier with a 4kW EXTC Photon 4048 solar MPPT converter in a single IP55-rated cabinet. The M2100 Controller manages rectifier, MPPT, and battery and load distribution together, running at up to 96.5% efficiency with comprehensive Li-Ion battery management and swappable rectifiers, MPPT & controller for fast servicing. ECO Mode energy savings and standard remote monitoring via web browser, Modbus, and SNMP let operators track grid and solar contribution from one dashboard, cutting diesel and grid dependency at every hybrid site.
Product Features
- System Contain – M2100 Controller + Rectifier + MPPT+ Battery Distribution + Load Distribution
- Swappable Rectifiers, MPPT & Controller
- Comprehensive battery management & built-in support for Li-ion battery charge
- ECO Mode function for rectifier enabling significant energy savings
- Remote Access – Monitoring through the web browser, Modbus & SNMP as a standard feature
- High Efficiency up to 96.5%
- Advanced AC and DC energy metering options
Tech specs
- AC Input: 3Phase, 90-300Vac (Nominal Voltage: 230Vac)
- Max Output Power: 12kW
- Rectifier Module: 4kW (EXTR Quantum 4048)
- Solar MPPT: 4kW (EXTC Photon 4048)
- Output Voltage: 54Vdc (42-58Vdc)
- Battery Compatibility: VRLA/Li-Ion
- Cooling: Fan & Filter
- Mounting: Floor mount
- IP 55 Outdoor solution
- Dimensions : 650mm (H) x 800mm (W) x 650mm (D)
