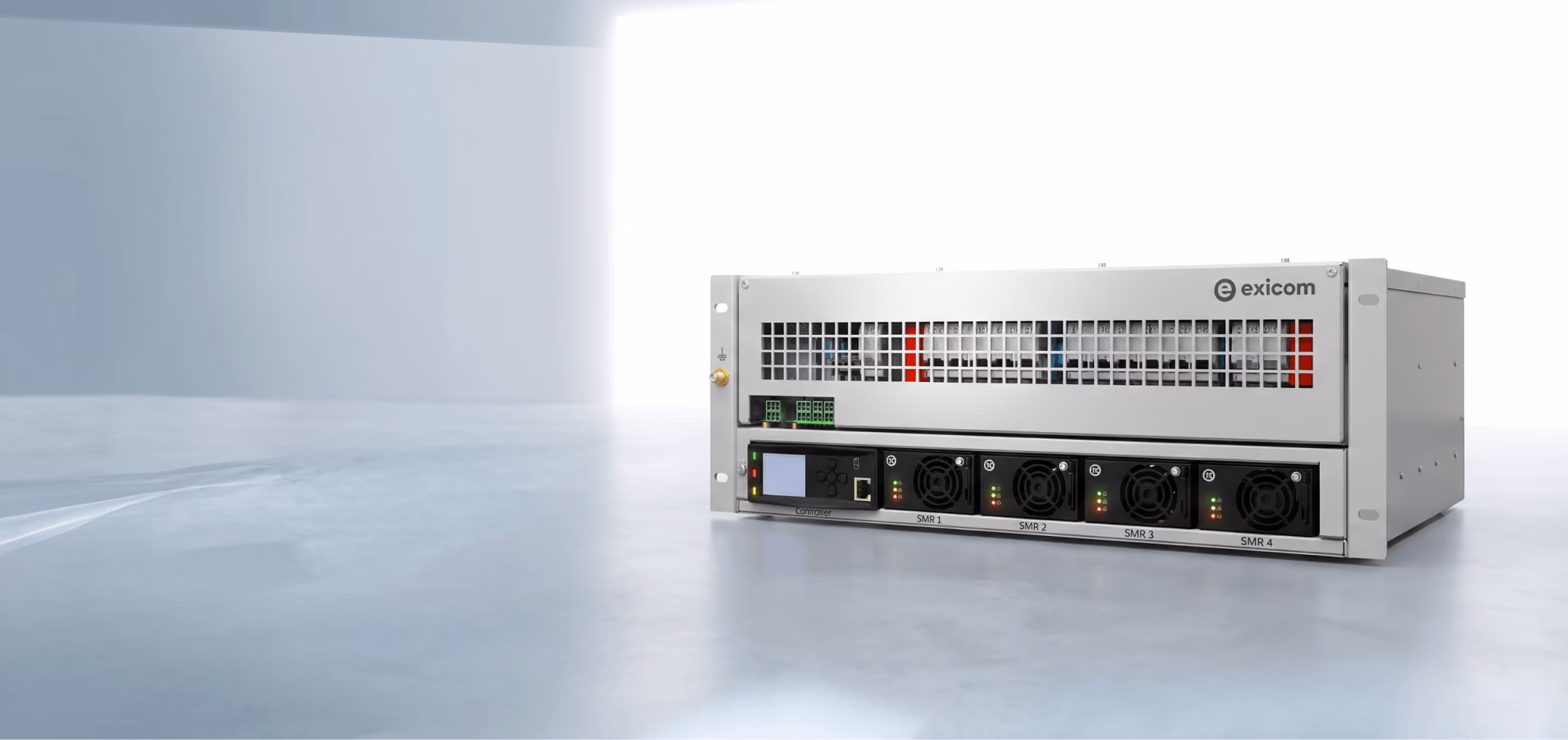

EXTS - Core 7.2kW/48V
7.2kW Rack-Mount Power Subrack for Space-Constrained Sites
Compact Power for Space-Constrained Sites
EXTS - Core 7.2kW/48V pairs a 1.8kW EXTR Quantum 1848 rectifier module with the M1000 Controller in a single 19.5-inch rack-mountable subrack, giving space-constrained indoor sites more usable power without a larger footprint. Delivering up to 96% efficiency, it carries forward the Core family's swappable rectifier and controller design, comprehensive Li-Ion battery management, and ECO Mode energy savings. Standard remote monitoring through web browser, Modbus, and SNMP, along with advanced AC and DC energy metering, gives site teams full visibility into performance and consumption from a single IP20-rated shelf.
Product Features
- System Contain – M1000 Controller + Rectifier + Battery Distribution + Load Distribution
- Swappable Rectifiers & Controller
- Comprehensive battery management & built-in support for Li-ion battery charge
- ECO Mode function for rectifier enabling significant energy savings.
- Remote Access – Monitoring through the web browser, Modbus & SNMP as a standard feature.
- High Efficiency up to 96%
- Advanced AC and DC energy metering options
Tech specs
- AC Input: 1Phase, 90-300Vac (Nominal Voltage: 230Vac)
- Max Output Power: 7.2kW
- Rectifier Module: 1.8kW (EXTR Quantum 1848)
- Output Voltage: 54Vdc (42-58Vdc)
- Battery Compatibility: VRLA/Li-Ion
- Cooling: Natural
- Mounting: 19.5-inch rack mount
- IP 20 Indoor solution
- Dimensions : 178mm (H) x 496mm (W) x 400mm (D)
- Worldwide telecom retrofit green solution
