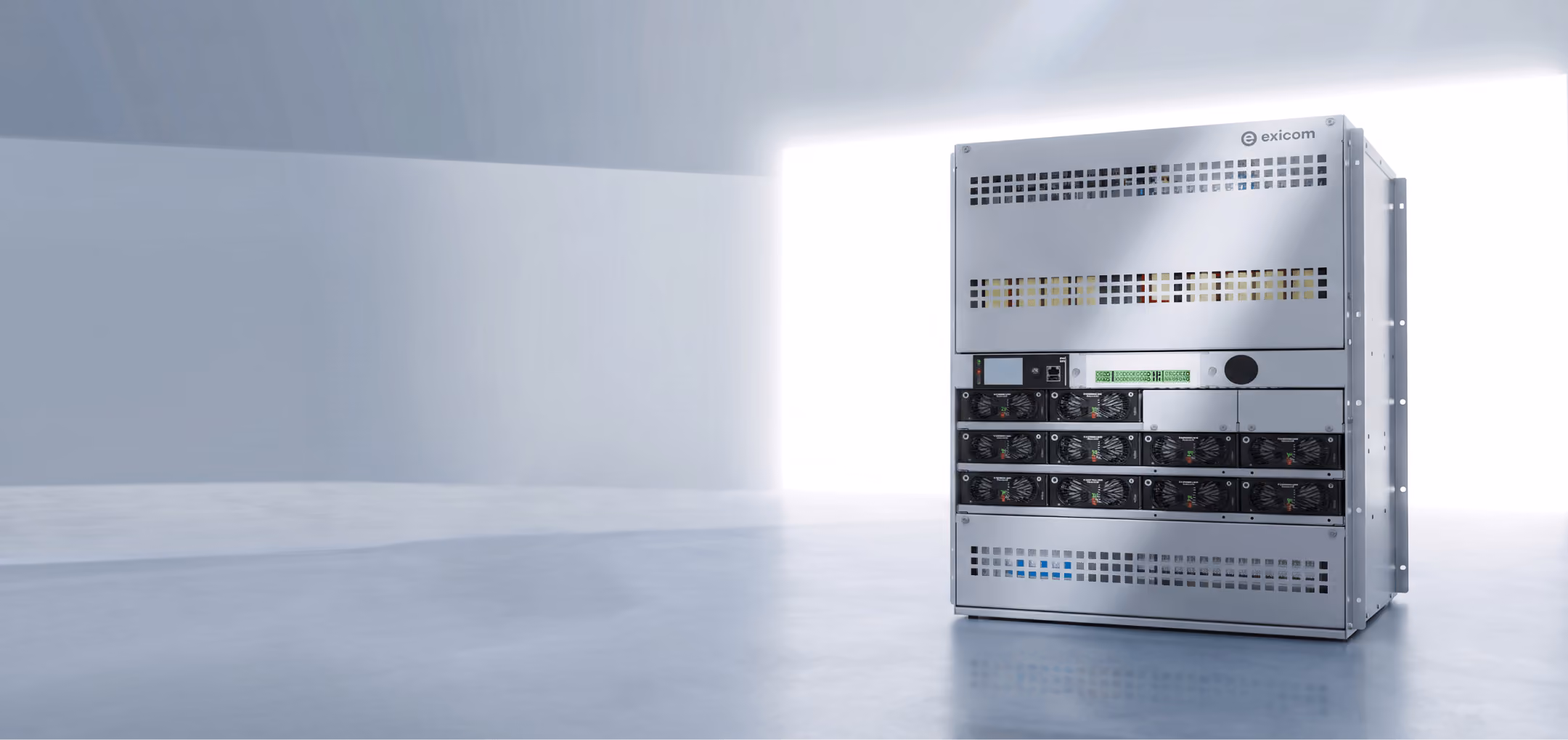

EXTS - Core 40kW/48V
40kW Highest-Capacity Rack-Mount Power Subrack for Indoor Sites
Compact Power for Space-Constrained Sites
At the top of the Core subrack range, EXTS - Core 40kW/48V delivers 40kW of indoor power from the same compact 19-inch rack-mountable, IP20 platform that defines the family, no separate outdoor cabinet required. Its 4kW EXTR Quantum 4048 rectifier modules run at up to 96.5% efficiency, backed by the M2000 Controller, comprehensive Li-Ion and VRLA battery management, and swappable rectifiers for fast servicing. ECO Mode energy savings and standard remote monitoring over web browser, Modbus, and SNMP make it possible to manage the highest-capacity Core system with the same operational simplicity as any other unit in the range.
Product Features
- System Contain – M2000 Controller + Rectifier + Battery Distribution + Load Distribution
- Swappable Rectifiers & Controller
- Comprehensive battery management & built-in support for Li-ion battery charge
- ECO Mode function for rectifier enabling significant energy savings.
- Remote Access – Monitoring through the web browser, Modbus & SNMP as a standard feature
- High Efficiency up to 96.5%
- Advanced AC and DC energy metering options
Tech specs
- AC Input: 3Phase, 90-300Vac (Nominal Voltage: 230Vac)
- Max Output Power: 40kW
- Rectifier Module: 4kW (EXTR Quantum 4048)
- Output Voltage: 54Vdc (42-58Vdc)
- Battery Compatibility: Li-Ion/VRLA
- Cooling: Natural
- Mounting: 19-inch rack mount
- IP 20 Indoor solution
- Dimensions : 620mm (H) x 482mm (W) x 400mm (D)
- Worldwide telecom retrofit green solution
