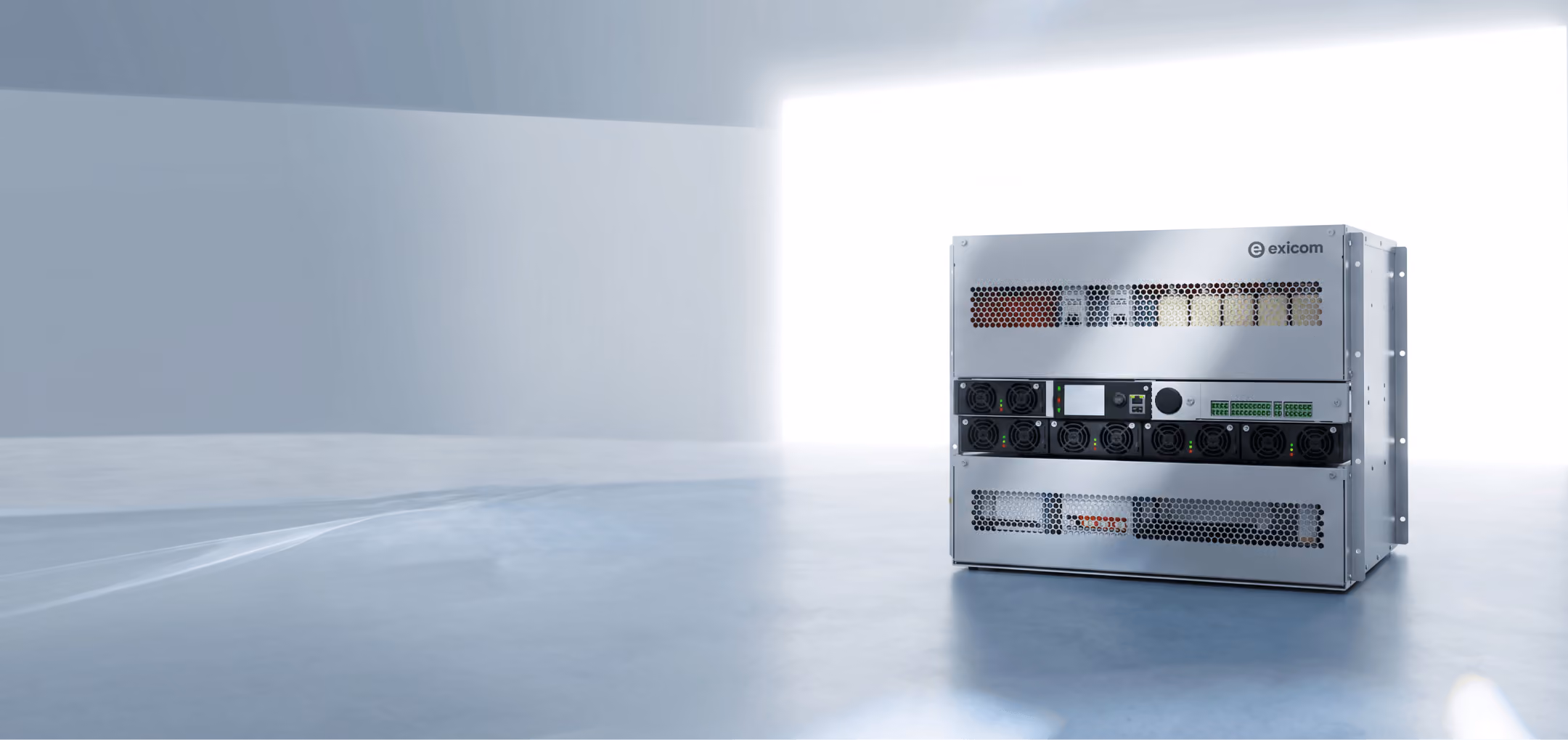

EXTS - Core 20kW/48V
20kW Rack-Mount Power Subrack with Advanced Controller
Compact Power for Space-Constrained Sites
EXTS - Core 20kW/48V brings Exicom's M2000 Controller into the Core subrack family, giving higher-capacity indoor sites the processing power to manage more complex configurations without leaving the 19-inch rack-mount platform. Its 4kW EXTR Quantum 4048 rectifier modules run at up to 96.5% efficiency, with comprehensive Li-Ion and VRLA battery management, swappable rectifiers, and ECO Mode built in. Standard remote access over web browser, Modbus, and SNMP, along with advanced AC and DC energy metering, keeps 20kW-class sites as easy to monitor as Exicom's smaller units.
Product Features
- System Contain – M2000 Controller + Rectifier + Battery Distribution + Load Distribution
- Swappable Rectifiers & Controller
- Comprehensive battery management & built-in support for Li-ion battery charge
- ECO Mode function for rectifier enabling significant energy savings.
- Remote Access – Monitoring through the web browser, Modbus & SNMP as a standard feature
- High Efficiency up to 96.5%
- Advanced AC and DC energy metering options
Tech specs
- AC Input: 3Phase, 90-300Vac (Nominal Voltage: 230Vac)
- Max Output Power: 20kW
- Rectifier Module: 4kW (EXTR Quantum 4048)
- Output Voltage: 54Vdc (42-58Vdc)
- Battery Compatibility: Li-Ion/VRLA
- Cooling: Natural
- Mounting: 19-inch rack mount
- IP 20 Indoor solution
- Dimensions : 400mm (H) x 482mm (W) x 400mm (D)
- Worldwide telecom retrofit green solution
