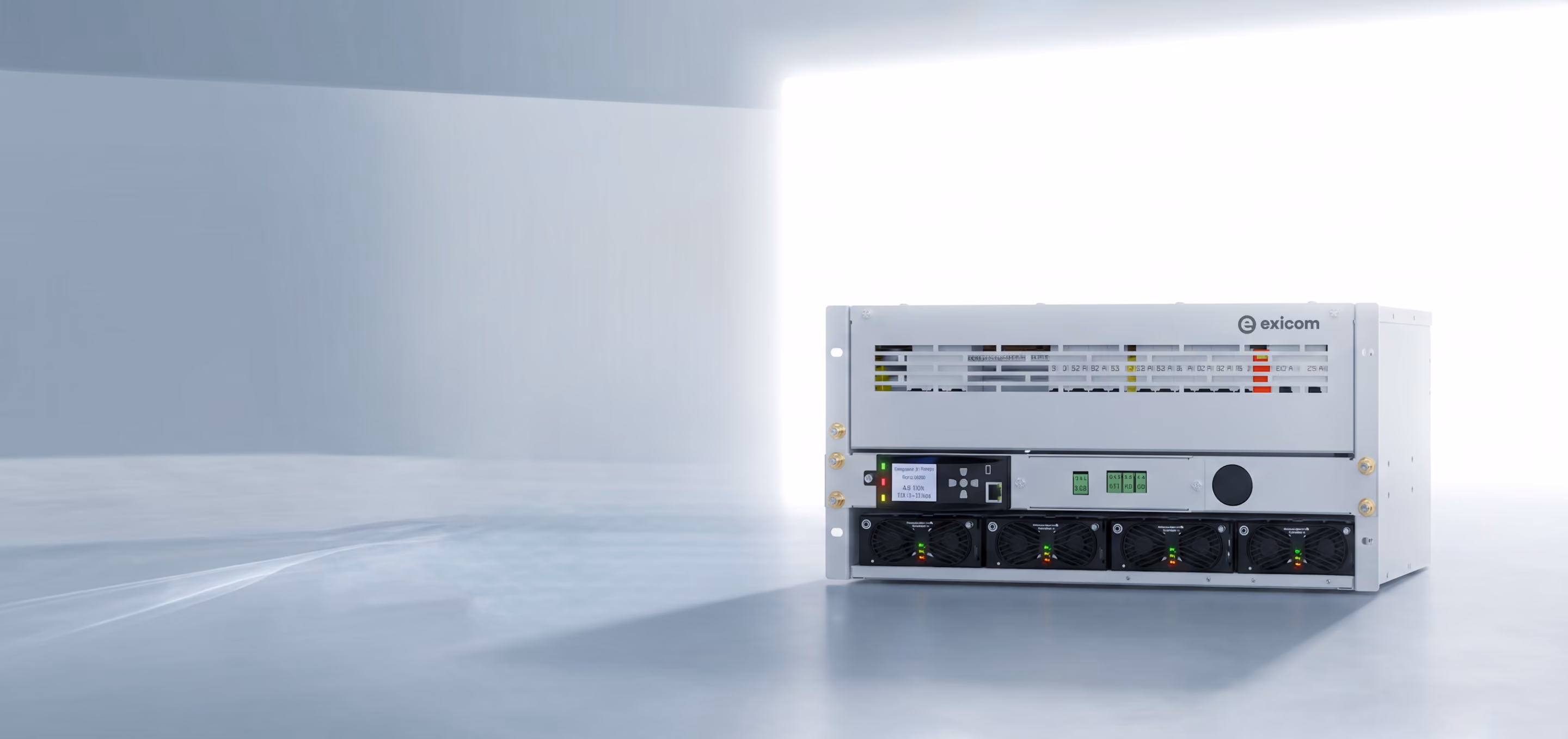

EXTS - Core 16kW/48V
16kW 3-Phase Rack-Mount Power Subrack for Indoor Sites
Compact Power for Space-Constrained Sites
Moving to 3-phase AC input, EXTS - Core 16kW/48V is engineered for indoor sites that need meaningfully more power without stepping outside the 19-inch rack-mount form factor. Its 4kW EXTR Quantum 4048 rectifier modules deliver up to 96.5% efficiency, supporting both Li-Ion and VRLA batteries through comprehensive built-in battery management via the M1000 Controller. The swappable rectifier and controller design, ECO Mode energy savings, and standard remote monitoring via web browser, Modbus, and SNMP carry the Core family's low-maintenance, high-visibility operating model up to higher-capacity sites.
Product Features
- System Contain – M1000 Controller + Rectifier + Battery Distribution + Load Distribution
- Swappable Rectifiers & Controller
- Comprehensive battery management & built-in support for Li-ion battery charge
- ECO Mode function for rectifier enabling significant energy savings.
- Remote Access – Monitoring through the web browser, Modbus & SNMP as a standard feature
- High Efficiency up to 96.5%
- Advanced AC and DC energy metering options.
Tech specs
- AC Input: 3Phase, 90-300Vac (Nominal Voltage: 230Vac)
- Max Output Power: 16kW
- Rectifier Module: 4kW (EXTR Quantum 4048)
- Output Voltage: 54Vdc (42-58Vdc)
- Battery Compatibility: Li-Ion / VRLA
- Cooling: Natural
- Mounting: 19-inch rack mount
- IP 20 Indoor solution
- Dimensions : 222mm (H) x 482mm (W) x 360mm (D)
- Worldwide telecom retrofit green solution
