Inside an EV Charging RMS: How Chargers Are Monitored, Managed, and Optimized at Scale

If you are a CPO, or in the process of becoming one, you are probably making investment decisions on sites, manpower and chargers already. But have you thought about how you will monitor what’s happening in each charging session?

India’s public charging network is scaling rapidly

India added thousands of charging points in the last two years, with numbers surging from around 12,000 in early 2024 to more than 20,000 by mid-2025, mainly driven by corporate expansion and government incentives. Ports are running cargo fleets; logistics companies are managing their delivery networks; real estate developers are adding chargers to commercial properties. But intsallation isn’t everything. As a CPO, it’s you who has to maximize the uptime of these public chargers to drive revenue. And managing uptime for 10 chargers, 500 chargers, vs 5,000 chargers are completely different ballgames.

How?

Maintaining uptime becomes more costly with scale

A single charger down for a day is annoying. A 5% charger outage rate across a 500-unit network is catastrophic. That is 25 chargers offline, meaning your fleet sits idle, your deliveries delay, and your revenue drops. For commercial operators, every offline charger repair cost + revenue loss.

When you manage a small network, you can check for faults in an EV charger by going to the site or simply calling the site manager. One person for 20 chargers is doable. But when you manage a network of 5000 EV chargers, it is impossible to manually check, unless you spend enormously and appoint 250 site managers plus their supervisors for every micro cluster. With that operational complexity, you’ll actually need more mechanisms for validation and consolidation. In short, without technology, you are flying blind. And no, this is not theoretical fear mongering. Uptime indeed is the 2^nd largest concern of EV users, the largest concern being a shortage of  EV charging stations itself. <Numbers>

The problem starts small. A thermal sensor fails. A firmware bug causes intermittent disconnections. A power module degrades. These are minor issues that eventually lead to charger failures. A cost-effective digital architecture that monitors and detects problems is needed to ensure uptime.

Remote Monitoring Systems increase uptime without increasing costs

A Remote Monitoring System (RMS) is fundamentally a layered architecture that creates visibility where none existed before. Think of this as analogous to a human nervous system.

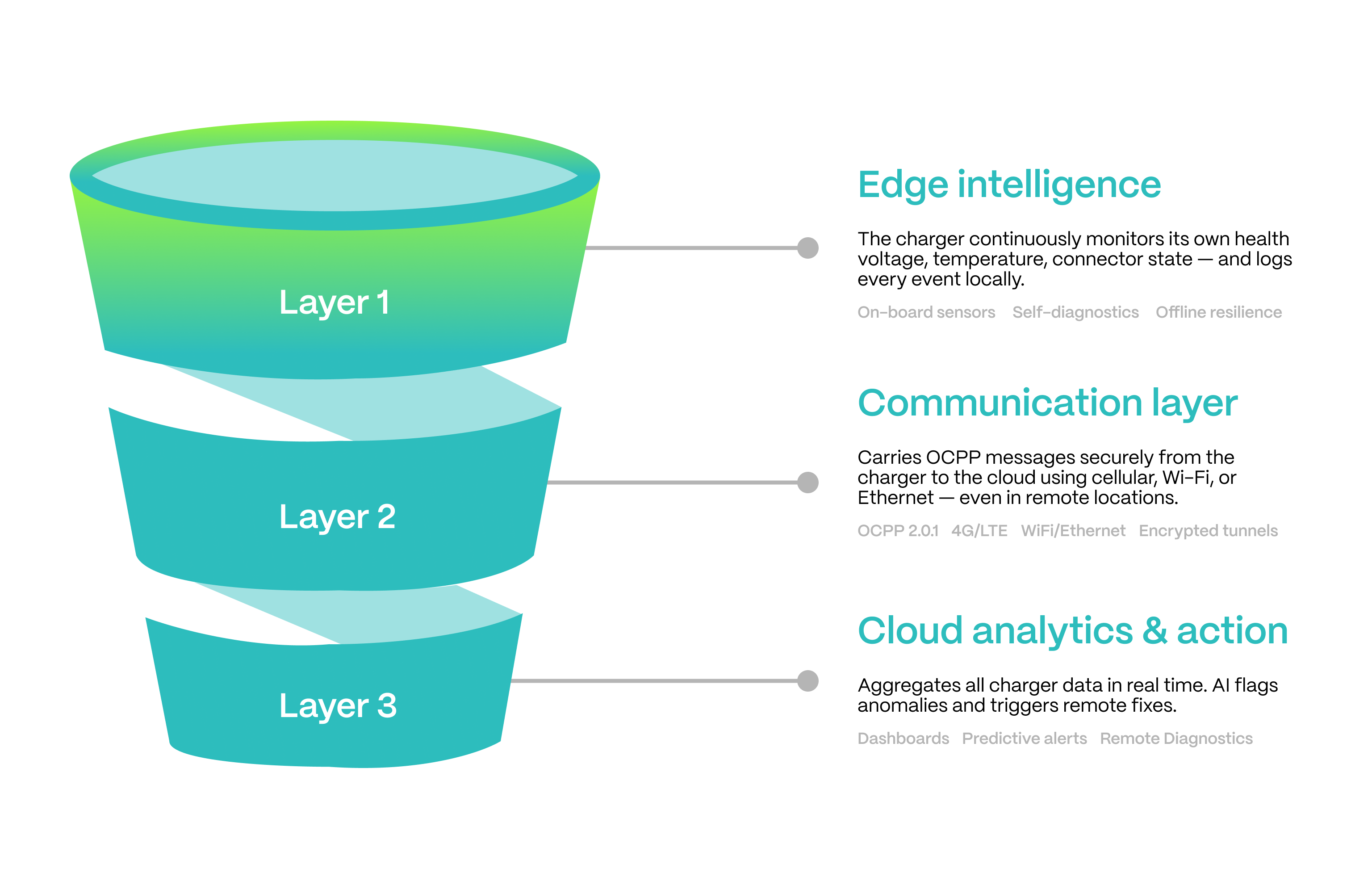

The RMS has 3 layers

The layers are divided into a 3 part architechture as follows:

• Layer 1: Edge Intelligence (The Charger Itself)

• Layer 2: Communication (Getting Data Off the Charger)

• Layer 3: Cloud Analytics and Action (Making Sense of It All)

Here’s a breakdown of these layers:

Layer 1: Edge Intelligence (The EV Charger Itself)

Starts at the charger. Inside every EV charger, is a small, embedded controller, essentially a computer the size of a shoebox. This controller has one job: watch everything.

It monitors:

• Voltage and current flow: Real-time electrical parameters as power flows to a vehicle.

• Temperature: Connector health, power module temperature, ambient conditions.

• Connector state: Whether it is connected, the contact quality, any arcing or corrosion.

• Transaction data: Who charged when, how much energy transferred, session duration.

• Fault codes: Any irregularity triggers a code that the system logs.

The controller does this continuously, not when something breaks. It learns normal patterns. When a voltage dip that would normally be harmless becomes repeated or severe, the system flags it. When temperature creeps up gradually, the system notices before the component fails. This is why remote monitoring systems catche problems 10 to 14 days before they become visible as downtime.

Layer 2: Communication (Getting Data Off the Charger)

The controller cannot help if it is stuck talking to itself. The charger needs to constantly send data to a central system. This happens over:

• OCPP over cellular: OCPP (Open Charge Point Protocol) is a standardized language that chargers use to talk to a backend. Think of it like a universal socket—different manufacturers, same language. It runs over 4G, 5G, or Ethernet. The advantage: the backend never needs to know the internal design of the charger. The protocol handles translation.

• Secure encryption: Data moves over an encrypted channel so that tampering and eavesdropping are not possible.

• Redundancy: If cellular drops temporarily, the charger buffers data and uploads when connection returns. No data loss.

For commercial operators, this layer is critical because it means you are not dependent on any single charger manufacturer’s proprietary system. OCPP is an open standard, which means a fleet with mixed-brand chargers can manage them all from one dashboard.

Layer 3: Cloud Analytics and Action (Making Sense of It All)

Terabytes of data streaming means nothing without interpretation. The cloud layer does three things:

• Real-time dashboards: You see the status of every EV charger: online, offline, how many charging sessions it had today, any warnings. Automated alerts notify you if something looks wrong.

• Predictive engines: Machine learning models analyze patterns to predict failures days or weeks before they happen.

• Automated responses: The system can trigger firmware updates remotely, reset stuck chargers with a digital command, or escalate to a technician with exact diagnostic information.

For a network of 500 chargers, this layer handles work that would otherwise require dozens of full-time technicians. And it does it far better because it never gets tired and never overlooks the slow, invisible problems.

If you are currently forming an opinion about the RMS, hold on for a little longer, because there’s more to it.

The RMS goes beyond monitoring uptime

Most CPOs think monitoring means one thing: Is the charger working or not? RMS goes much deeper than that. It enables the CPO with visibility on session level, can track power quality, individual performance of connectors, and monitors each component of the EV charger for thermal safety.

Session-Level Diagnostics

When an EV charges, the RMS captures:

• Power delivery: Actual kWh flowed (e.g., 8 kWh vs. 10 requested signals throttling).

• Current stability: Fluctuations indicate control or grid issues.

• Connector contact quality: Via contact resistance (high = corrosion/bad connection).

• Full session metadata: Times, errors, interruptions.
  Fleet managers see not just if it worked, but how well—scheduling maintenance for 90% power delivery before failure.

Power Quality Tracking

‍Grid instability, like voltage sags, frequency fluctuations, and harmonics cause failures. RMS correlates them to pinpoint issues. If a charger fails only when grid voltage drops below 195 V, the system knows the issue is not the charger, it is the building’s electrical infrastructure. This changes who you call to fix it.

Connector-Level Performance

Connectors wear with use, building oxidation. RMS tracks resistance trends, alerting weeks early for scheduled replacement, preventing peak-hour breakdowns.

Thermal Behavior Monitoring

Heat accelerates failure in modules, contactors, connectors. RMS flags trends like 10°C above normal, catching stress before breakdowns.

The real power of RMS, however, is not issuing alerts over broken EV chargers. It prevents breakage in the first place.

Predictive Maintenance in RMS Stops Failures Before They Happen

Predictive maintenance in RMS uses real-time data and analytics to foresee equipment issues before they cause breakdowns. This approach shifts from reactive fixes to proactive interventions, minimizing unplanned downtime in heavy industrial settings like steel production.

Pattern Recognition in Electrical Anomalies

Chargers fail through patterns, not random events. A contactor might stick slightly, causing a brief overvoltage spike. Isolated, this is noise. Repeated over 100 charges, it is a failure trajectory. The system sees this:

• Repeated minor voltage spikes at session start.

• Slight current ripple during constant-power mode.

• Gradual increase in quiescent (idle) current draw.

Individually, each is a fraction of normal variation. Together, they forecast a contactor failure with 80–90% confidence, weeks before it happens.

Repeated Minor Faults as Failure Indicators

A charger might report a recoverable errors: a communication glitch, a brief thermal throttle, a momentary relay click. A human technician might see this as a one-off and ignore it. An RMS looks at the sequence. 5 communication timeouts over two weeks, each self-recovering? The system knows a power supply is failing. 12 thermal throttle events over a month? A cooling system blockage is developing.

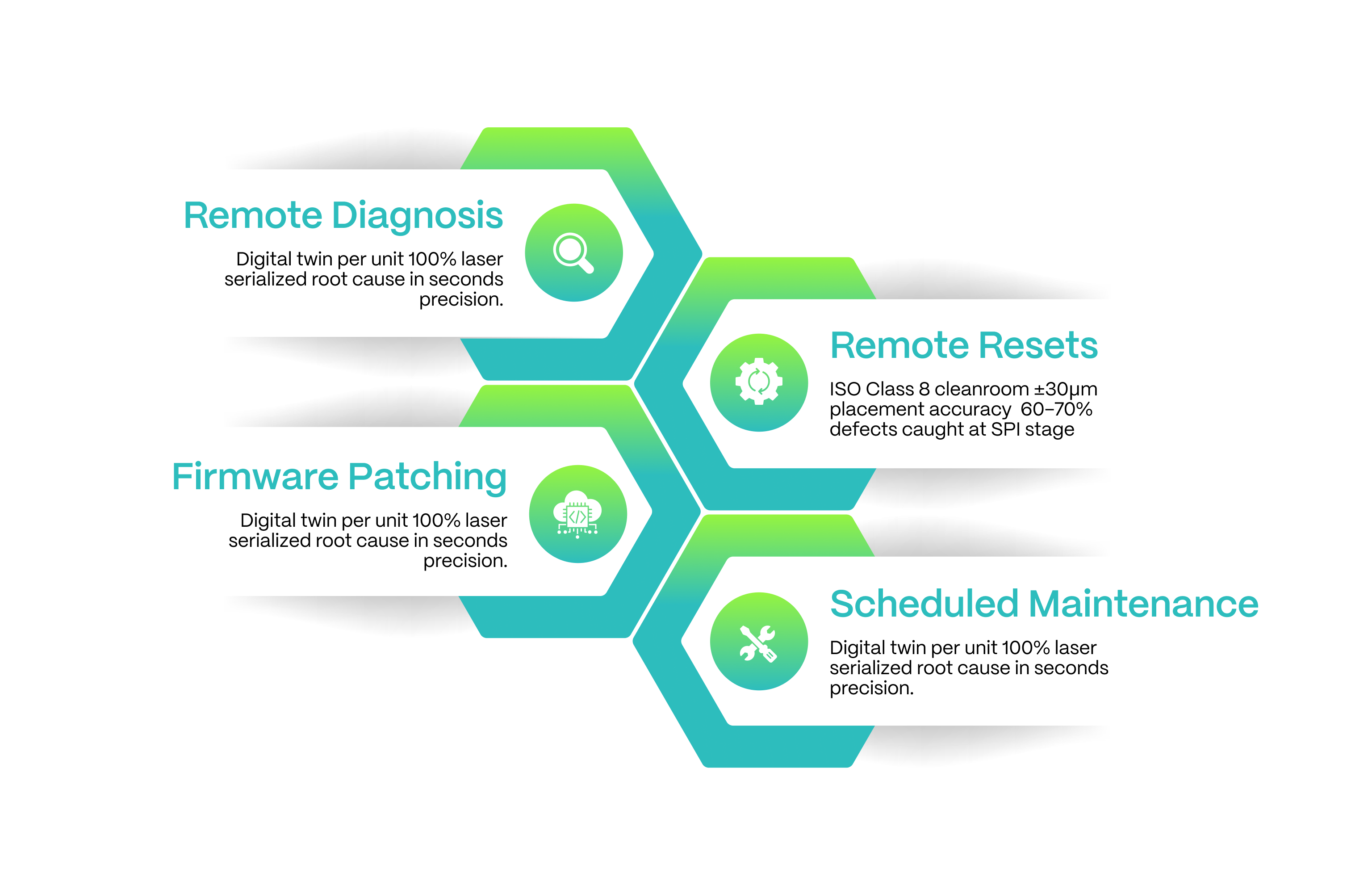

Reducing Truck Rolls (Remote Fixes Versus On-Site Visits)

Traditional maintenance is reactive: charger breaks, technician drives to site, diagnoses on-site, orders parts, comes back to install. That is 3 visits for one failure. Each visit is 2–4 hours of technician time plus 1–2 hours of travel.

An RMS cuts this dramatically:

• Remote diagnosis: The system already has complete diagnostic data. The technician knows exactly what to bring before leaving.

• Remote resets: Many faults are transient (a stuck state in the firmware). A remote reset via OCPP command clears it immediately. No truck roll needed.

• Firmware patching: A charger software bug causing intermittent failures gets deployed to all units overnight, not visited one by one.

• Scheduled versus emergency maintenance: Predictive alerts let you schedule maintenance during planned windows instead of emergency callouts during revenue-critical hours.

For a fleet of 500 chargers with 95% uptime, an RMS might reduce emergency calls by 60–70%, dropping service costs by 40–50% . A 100-charger site that used to need a full-time technician stationed nearby might need only a part-time technician checking in twice weekly.

Load Optimization through RMS can turn EV chargers into a grid asset

Most operators think about charging as a unidirectional problem: How do I push power into vehicles as fast as possible? An RMS allows a shift to How do I push power into vehicles in a way that stabilizes my building’s load and avoids demand charges?

Dynamic Load Management Across Multiple Chargers

A building’s electrical panel has a maximum draw, say, 200 kW. If air conditioning peaks at 80 kW and all chargers fire at once at 60 kW each, you exceed capacity. The building’s breaker trips or worse, you pay a demand charge (a spike tax on the highest 15-minute average consumption).

An RMS connected to your building’s smart meter can see real-time building load. Here is what it does:

• Charger prioritization: If you have 5 chargers and 150 kW available, the system assigns power: full for essential vehicles, reduced for others, stopped for lowest-priority vehicles.

• Load smoothing: Instead of all 5 chargers ramping power in unison (which causes a sudden demand spike), they stagger ramp-up over 30 seconds. The total draw glides upward rather than spiking.

• Demand charge avoidance: Demand charges are punitive—a single peak in a month drives a surcharge. By flattening peaks, RMS can reduce demand charges by 10–20% over a month .

For a commercial real estate operator with a 50-charger lot, this might mean cutting electrical costs by ₹5,000–₹10,000 per month.

Time-of-Use Optimization

Electricity prices fluctuate by time of day. Peak hours (9 am–5 pm, 6 pm–10 pm) are expensive. Off-peak (11 pm–6 am) is cheap. An RMS can defer charging when possible, shifting loads to cheaper hours . This requires coordination with fleet schedules.  For a logistics fleet with predictable routes, this works:

• Morning arrivals charge only 50% during peak hours (since day routes are short).

• Overnight, when parked, vehicles charge to 100% during off-peak.

• Evening arrivals from long routes prioritize fast charging at peak rates (unavoidable), but the system prepares cheaper capacity for next morning.

A fleet paying ₹15/kWh at peak and ₹7/kWh off-peak can cut energy costs by 20–30% through intelligent scheduling. For 100 vehicles consuming 50 kWh per day each (5,000 kWh/day), that is ₹40,000–₹60,000 in savings monthly.

Renewable Integration and Demand Response

Many commercial sites use solar. During midday, solar output peaks. A traditional charger is indifferent—it charges when plugged in, regardless of solar availability. An RMS connects chargers to solar output and shifts charging to sunny hours :

• If solar is producing 30 kW and chargers are idle, the system starts charging low-priority vehicles.

• If solar drops (cloud passes), the system prioritizes high-priority vehicles that are nearly full.

• If energy storage (batteries) is present, the RMS can charge storage during solar peaks and discharge to chargers during evening when solar is gone .

This multiplies solar benefit. Instead of just reducing building electrical draw, it directly uses renewable power for vehicles, improving the carbon math.

For building resilience, the RMS can also coordinate with grid demand response programs. If the grid sends a signal asking buildings to reduce load (because of supply stress), the RMS throttles low-priority charging. The building gets paid a small incentive, and grid stability improves. This is a new revenue stream that barely exists without RMS automation.

Buildings with RMS can participate in demand response programs, earning ₹1,000–₹3,000 per event (3–10 events per month), turning charging into a revenue-generating asset.
