EXCS - FCS
Fan-and-Filter Cooling Unit for Outdoor Telecom Cabinets
Smart Thermal Protection for Every Site

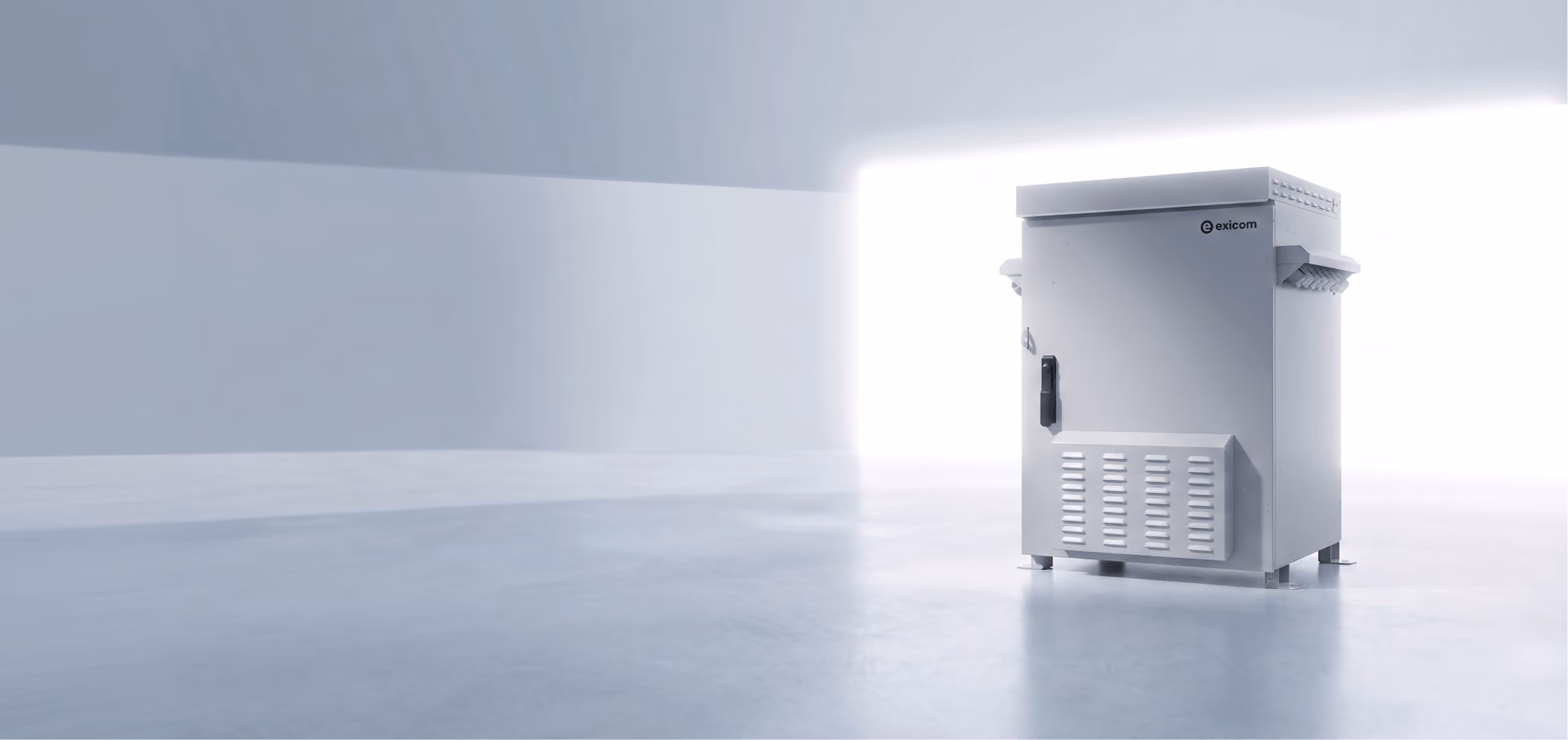

EXCS - FCS is Exicom's fan-and-filter cooling unit for outdoor telecom cabinets that need straightforward, low-cost thermal management. Fans deliver a combined 240 CFM of airflow, with temperature-regulated fan speed keeping energy consumption and noise low across varying site conditions. Dry contacts extend fan-fail, high-temperature, and smoke alarms to the site's monitoring system, while standard Modbus RTU access gives operators remote visibility into cooling performance from a compact 10U footprint, pole- or floor-mounted.
Product Features
- Filter & Fan cooling
- Temperature-regulated fan speed for low energy use and low noise
- Dry Contacts to extend alarms — Fan Fail, High Temperature, Smoke, etc.
- Remote monitoring via Modbus RTU
Tech specs
- DC Input: 42–60Vdc (Nominal 48Vdc)
- Cooling: Fan & Filter
- Cooling Capacity: 240 CFM x 4 Fans
- Mounting Space: 10U
- Mounting: Pole / Floor mount
- Protection Rating: IP55 (Outdoor)
- Dimensions: 950mm (H) x 600mm (W) x 550mm (D)
