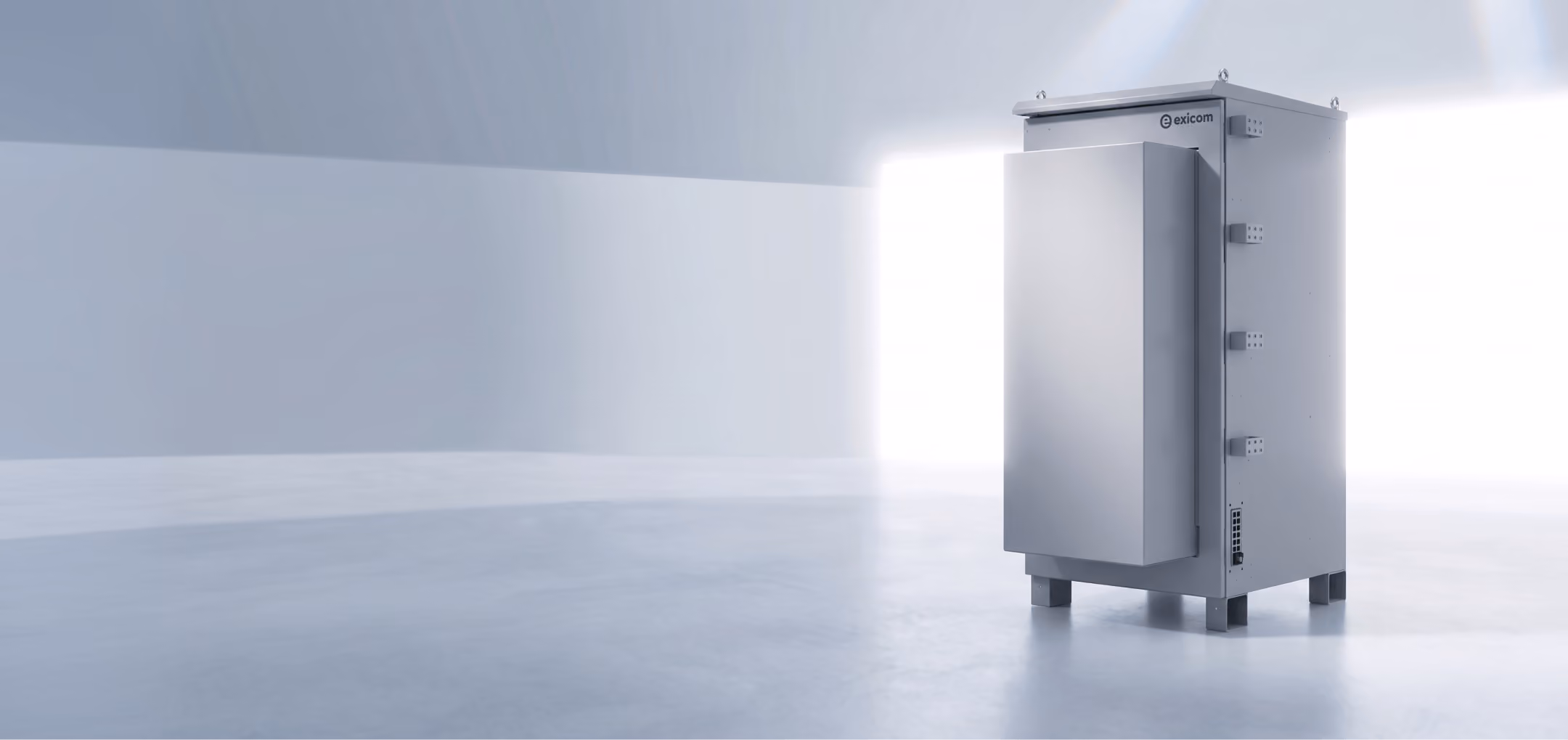

EXCS - DCA 2000W
2000W DC Aircon with Heat Exchanger for Outdoor Cabinets
Smart Thermal Protection for Every Site
EXCS - DCA 2000W combines active aircon cooling with a heat exchanger in a single outdoor enclosure, giving telecom cabinets 2000W of aircon capacity (L35/L35) plus 180W/K of passive heat-exchange capacity to handle varying thermal loads efficiently. Built entirely from DC-driven components, fans, compressor, and internal/external fans, it uses R134a refrigerant rated for T3 temperature conditions and draws minimal power thanks to its variable-speed DC motor. A comprehensive self-protection design manages partial-load starting and operation under severe ambient conditions, while standard Modbus RTU monitoring keeps thermal performance visible from anywhere.
Product Features
- DC Aircon combined with Heat Exchanger cooling
- Built entirely from DC-driven fans, compressor, and internal/external fans
- Rated for T3 temperature using R134a refrigerant
- Remote monitoring via Modbus RTU
- Variable-speed DC motor for low energy use and low noise
- Self-protection design for partial-load starting and severe ambient conditions
Tech specs
- DC Input: 42–60Vdc (Nominal 48Vdc)
- Cooling: Aircon with Heat Exchanger
- Cooling Capacity: Aircon 2000W (L35/L35), HEX 180W/K
- Refrigerant: R134a
- Mounting Space: 24U
- Mounting: Floor mount
- Protection Rating: IP55 (Outdoor)
- Dimensions: 1550mm (H) x 650mm (W) x 600mm (D)
