What is an Earth Rod?
Definition
An earth rod, also known as a grounding electrode, is a metal rod driven into the ground to establish a safe path for fault currents. In EV charging, earth rods are often required when protective earthing from the utility grid is inadequate or when PEN-fault protection is not available.
Why Earth Rods Matter
Earth rods improve safety by lowering the resistance between a charging system and the ground. Without effective grounding, fault currents may not trip protective devices, leaving metalwork dangerous to touch. In EVSE installations, rods are particularly critical in TT earthing systems, rural locations, and standalone chargers.
How it Works

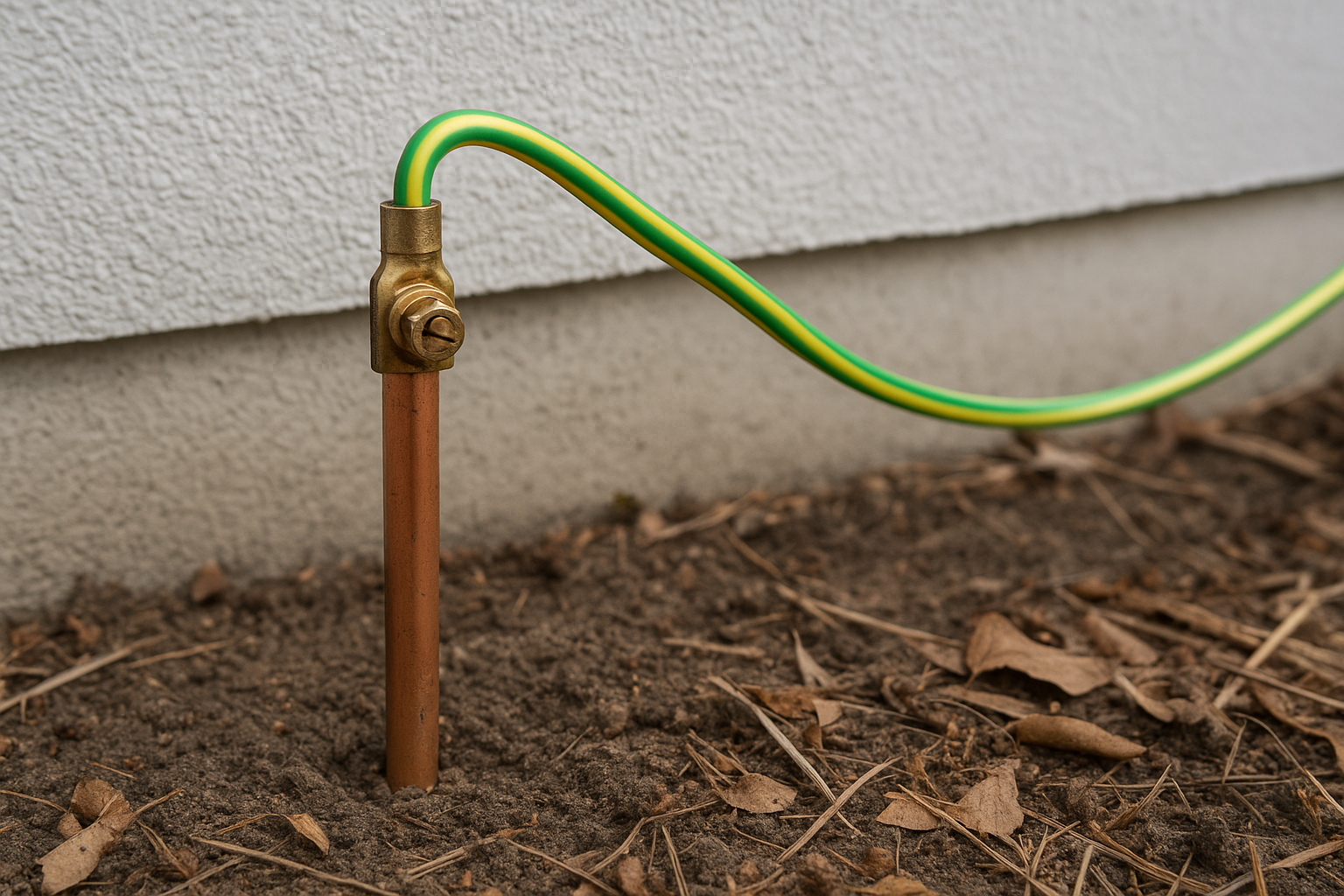

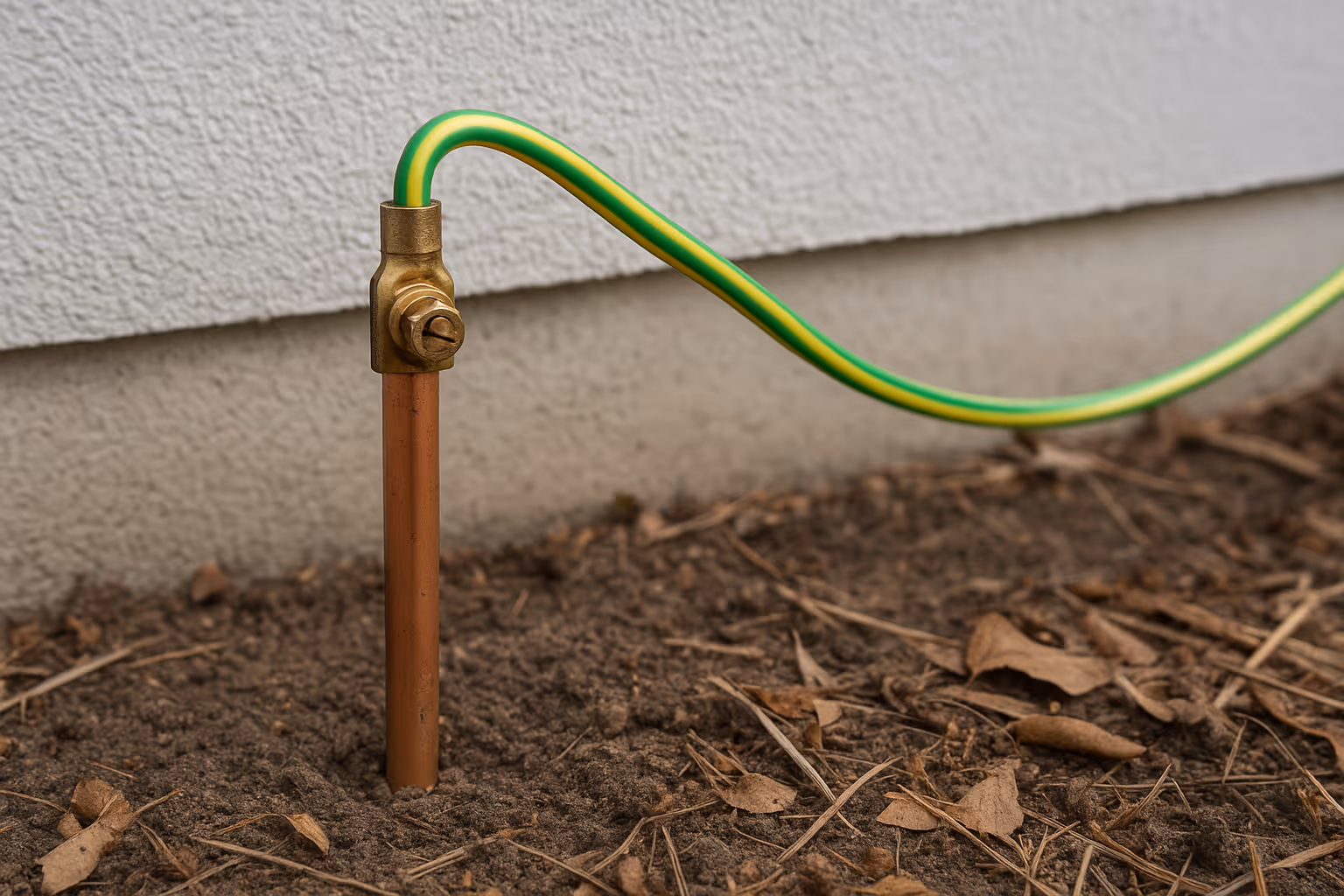

The rod, typically made of copper-bonded steel, is inserted into soil at a depth sufficient to achieve low resistance. It is connected to the main earth terminal of the charger. Multiple rods can be used in parallel to further reduce impedance. Regular testing ensures that the earth resistance meets national electrical safety standards.
Key Technologies / Features
Earth rods may include threaded couplers to extend depth, corrosion-resistant coatings for durability, and soil enhancement compounds to reduce resistance in dry or rocky conditions. Integration with monitoring devices ensures compliance over the system’s lifetime.
Applications
- TT earthing for standalone chargers.
- Rural and semi-urban charging stations.
- Carports or chargers installed away from main building earthing.
- Temporary event-based charging hubs.
Benefits
Earth rods provide a simple, cost-effective method of ensuring safety, protecting users, and maintaining compliance in challenging environments. They also improve the reliability of protective devices and lower liability risks for operators.
Use Cases
Rural chargers often rely on earth rods due to poor grid earthing. Public EVSE installed on lampposts or bollards frequently use earth rods for localized protection. Seasonal event charging systems use earth rods to establish safe operation in temporary setups.
