What is Connector Type?
Definition
Connector type refers to the standardized interface used to link an EV with a charging station. It defines the physical design of the plug, the power levels it supports, and the communication between the vehicle and the charger. Different regions use different connector standards, such as Type 2 in Europe and India, CCS (Combined Charging System) in much of the world, CHAdeMO in Japan, and NACS (North American Charging Standard) in the United States.
Why Connector Type Matters
Connector type is essential for ensuring compatibility and smooth user experience. A charging station with the wrong connector cannot serve certain vehicles, leading to customer dissatisfaction and poor infrastructure utilization. For operators, supporting the right mix of connectors is critical to maximize usage and remain competitive. For regulators and OEMs, standardization helps accelerate adoption and lower infrastructure costs.
How it Works
Connectors provide both the electrical path and a communication channel. This communication ensures that the charger and the vehicle agree on charging limits, safety measures, and sometimes even payment processes. Some advanced connector standards support bidirectional charging, enabling vehicle-to-grid or vehicle-to-home applications.
Key Technologies / Features

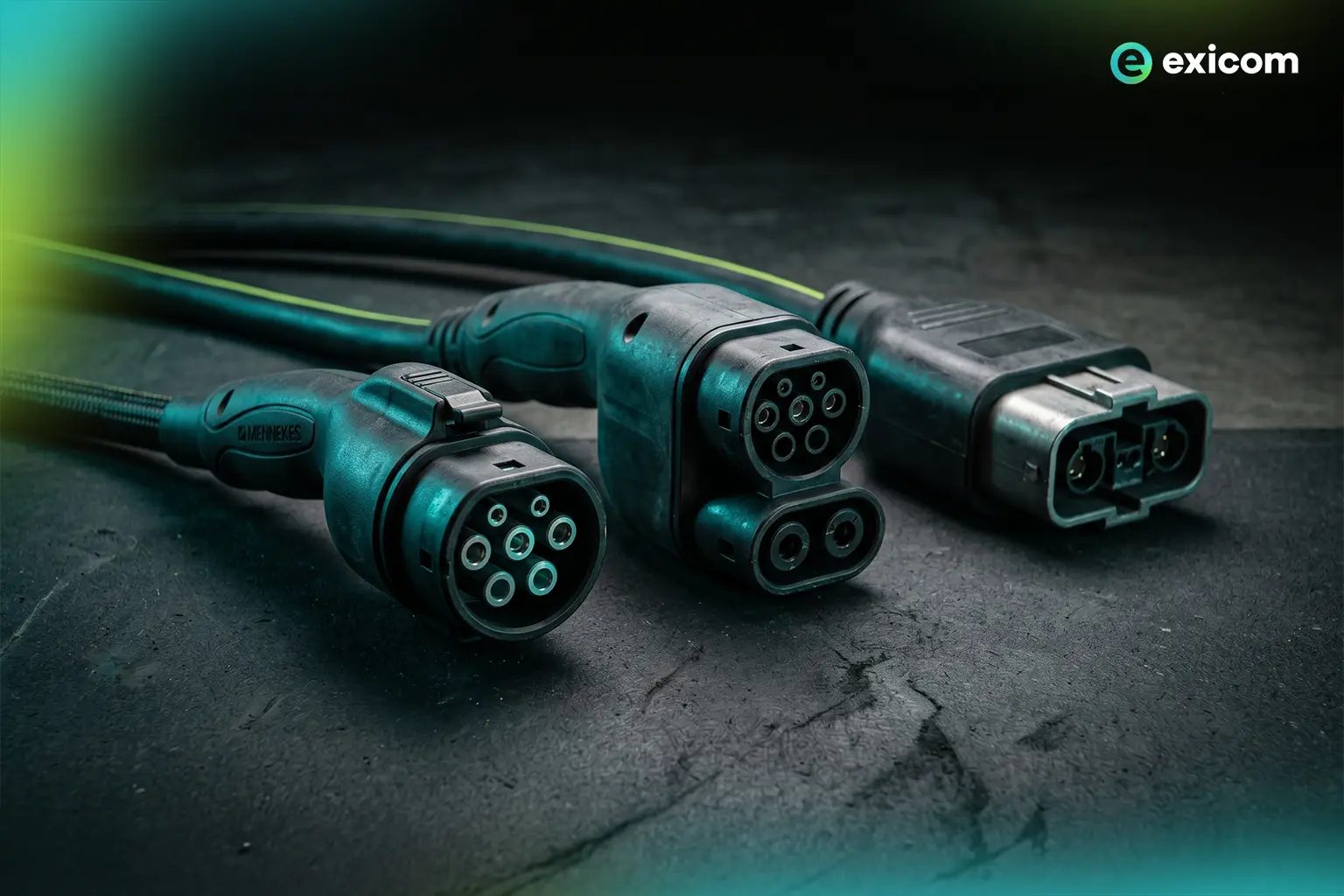

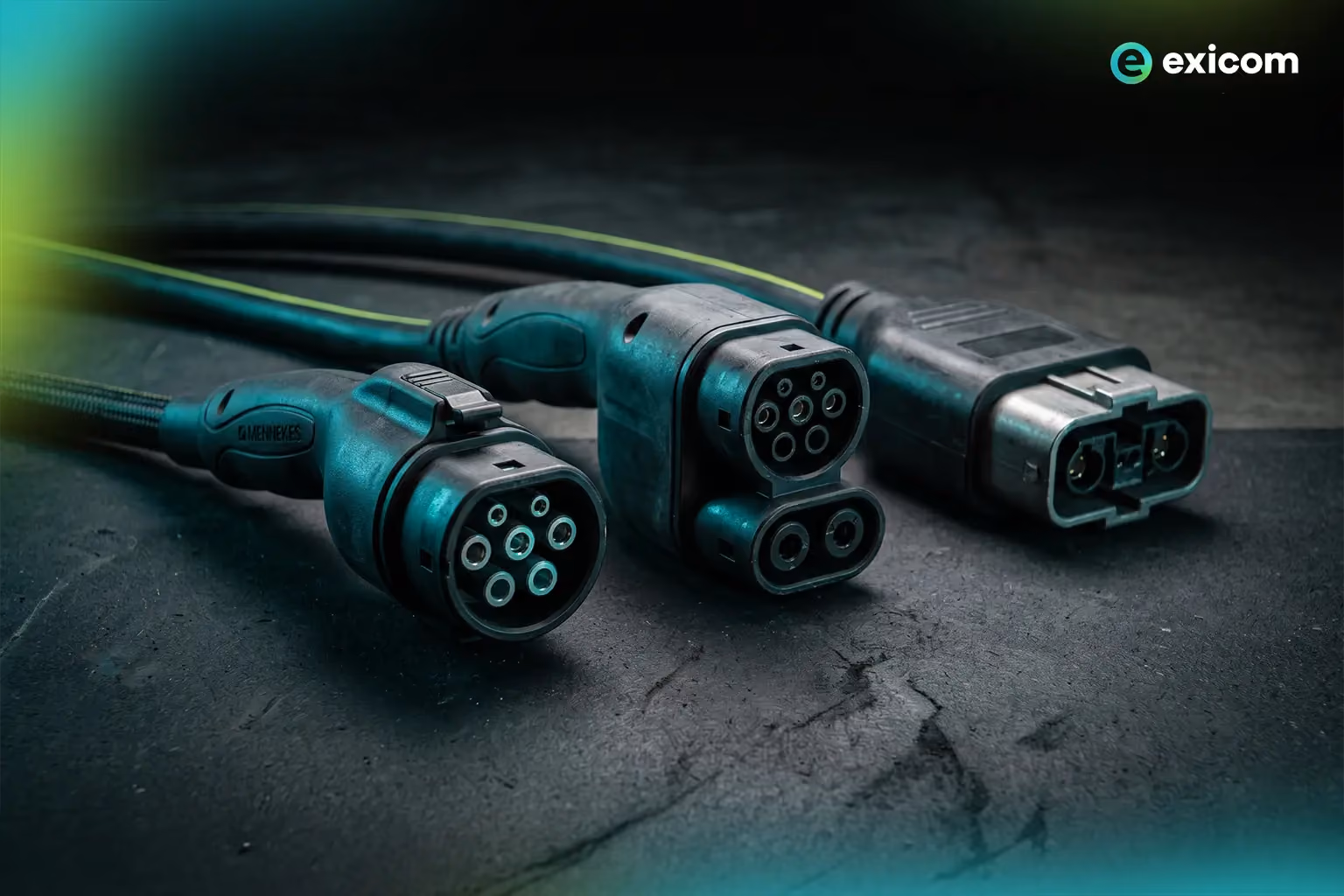

Connector types vary widely in capability. Type 2 connectors support both single-phase and three-phase AC charging. CCS combines AC and DC pins to allow flexible charging up to ultra-fast power levels. CHAdeMO, though less common today, supports high-power DC and optional V2G functionality. NACS offers a compact design and is increasingly being adopted across North America by multiple manufacturers.
Applications
- Public charging networks that install multi-standard connectors to support all vehicles.
- Residential chargers using Type 2 sockets or tethered cables.
- Fleet depots unifying around one connector type for operational simplicity.
- Transition markets maintaining CHAdeMO alongside CCS to support legacy vehicles.
Benefits
Standardizing connector types enhances reliability, reduces costs for operators, and improves convenience for drivers. It ensures that infrastructure remains useful over time as vehicle technology evolves.
Use Cases
Highway hubs often offer both CCS and CHAdeMO ports to serve diverse vehicles. Residential areas rely heavily on Type 2 connectors, while North America increasingly transitions to NACS. Fleet depots typically standardize on a single connector type to streamline operations.
